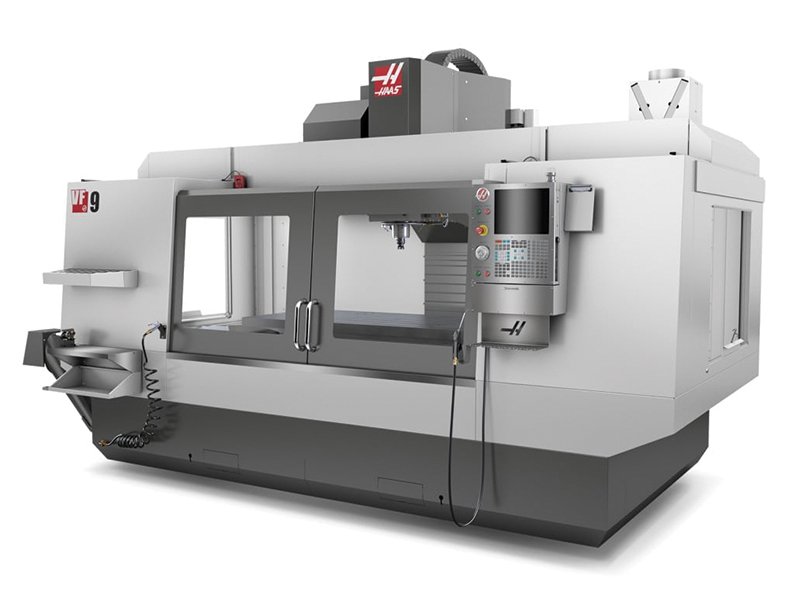

Haas VF9

Haas VF9

Bedsize: 2300 x 910
RPM: 3 Axis 15000 RPM
Max Table Load: 1814kg
Max Block Size: 2134 x 1016 x 762
Details:

Spindle:
Max Watts: 22.4kW
Max speed: 15,000 RPM
Coolant: Liquid Cooled.

Table Size:
L = 2134mm W = 914mm
Max Weight: 1814kg

Feed Rates:
Max Cutting: 12.7 m/min
X = 15.2 m/min
Y = 15.2 m/min
Z = 15.2 m/min

Max Thrust:
X = 15124N
Y = 15124N
Z = 24910N

Tool Changer:
Type: SMTC
Capacity: 30+1
Tool-to-Tool(avg): 2.8s
Chip-to-Chip (avg): 3.6s
Coolant capacity: 360L
0.6kW pump – 30psi flow – 19.9L/min @ 2 bar

The VF9 is a large CNC machine, that comes equipped with a 30(+1) slot side-mounted tool changer to allow for faster and more efficient production of units.
Combined with the 360-litre coolant capacity able to flow at 30psi. meaning continuous production of units for extended periods of time.
A chip auger is used to clear chips from the machines automatically during use, compressing them and removing them, resulting in reduced pausing while work is being processed and after job completion, resulting in overall faster production.
